Large-Dia High-Buoyancy Floating Mooring Buoy (Offshore) | Anti-Salt Spray Carbon/Stainless Steel, IMO MSC.1/Circ.1580, for Oil Rigs/FPSO
ویژگی های کلیدی
نام تجاری:
Henger
شماره مدل:
004
محل مبدا:
چین
گواهینامه:
ISO 9001
حداقل مقدار سفارش:
1
قیمت:
500
توانایی تامین:
50 قطعه در هفته
زمان تحویل:
15-30 روز کاری
شرایط پرداخت:
L/C ، D/A ، D/P ، T/T
بسته بندی استاندارد:
بسته بندی برهنه
خلاصه محصول
Large Diameter Marine Offshore Steel Floating Mooring Buoy Product Description Steel mooring buoys stand as pivotal anchoring infrastructure within port facilities, meticulously engineered to reliably accommodate vessels across a spectrum of tonnages. Their operational framework is defined by ...
ویژگی های سفارشی محصول
برجسته کردن
طومار لنگر زنی بزرگ و قوی,قایق استیل در ساحل با ضمانت,مهتاب ضد اسپری نمک برای سازه های نفتی
,offshore steel mooring buoy with warranty
,anti-salt spray mooring buoy for oil rigs
نام محصول:
شناور آویز لنگرگاه
مادی:
فولاد ، پر کردن اوا
اندازه:
اندازه سفارشی
ضمانت:
12 ماه
رنگ:
رنگ سفارشی
سرویس آرم:
سفارشی
علامت تجاری:
چمن
منشاء:
چین
طراحی:
طراحی مدولار
توضیحات محصول

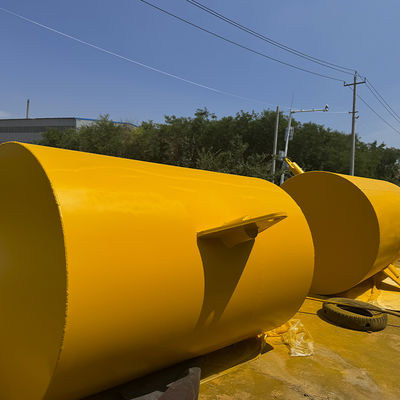

Large Diameter Marine Offshore Steel Floating Mooring Buoy
Steel Mooring Buoy Technical Parameter
| Model | Net Buoyancy | D×H (m) | Suitable for Ship Tonnage (t) |
| HESMB 2.0 | 3 | 2.0×1.74 | <2000 |
| HESMB 2.6 | 6 | 2.6×2.27 | <5000 |
| HESMB 3.6 | 19 | 3.6×2.14 | <10000 |
| HESMB 5.0 | 28.5 | 5.0×3.4 | <12000 |
| HESMB 5.5 | 31.2 | 5.5×3.0 | <100000 |
| HESMB 6.0 | 34.2 | 6.0×3.2 | <150000 |
| HESMB 8.0 | 40.3 | 8.0×2.46 | <250000 |

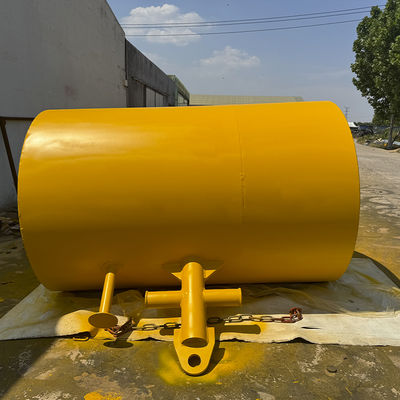

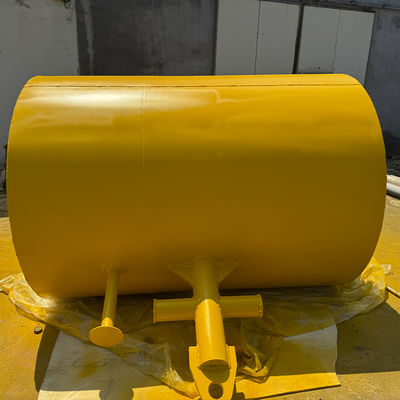

Anchor Pendant Buoy
Anchor pendant buoys come in an extensive range of sizes, offering options such as suitcase-style, modular, non-modular, custom-made, and standard configurations. All units are equipped with removable central steelwork, which is tailored to meet specific customer requirements—typically featuring either a handling crucifix/pad eye arrangement or a through hawse designed for use with anchor wire instead of chain.
Anchor Pendant Buoy Technical Parameters
|
Model
|
Reserve Buoyancy (kg) |
Diameter (mm) |
Float Length (mm) |
Overall Length (mm) |
Weight (kg) |
|
HE-APB1000
|
1000 | 1350 | 1100 | 1900 | 300 |
|
HE-APB2000
|
2000 | 1500 | 1500 | 2600 | 500 |
|
HE-APB3000
|
3000 | 1850 | 1500 | 2600 | 600 |
|
HE-APB4000
|
4000 | 2000 | 1900 | 2900 | 850 |
|
HE-APB6000
|
6000 | 2500 | 2200 | 3250 | 1000 |
|
HE-APB8000
|
8000 | 2500 | 2200 | 3250 | 1250 |
|
HE-APB10000
|
10000 | 3000 | 2200 | 3500 | 1550 |
|
HE-APB20000 |
20000 | 3500 | 3000 | 4200 | 2400 |
*buoy sizes and buoyancy can be customized according to customer design.
You can contact me at any time if you need it. Thank you for reading.
